1:1250 Masterplan Model

Commissioned by the Welsh Assembly Government through an exhaustive tendering process, this model’s role was to illustrate the new infrastructure and planning proposals for a major new development area in the docks and coastal fringes of Llanelli, South Wales. The model showed new road links, new residential areas, and commercial development areas. It also used button activated fibre optic lighting to highlight six different development zones.

1:20 Model of Information Point

This model was used to help illustrate the proposed design of a new information booth. It had removable security screens and faithful representation of all the material finishes. Even the illumination was a scaled down representation of the proposed lighting system.

1:50 Floor Plan Layout

The purpose of this 1:50 scale floor plan model was to provide an "at a glance" explanation of the various apartment layouts on a typical floor of a large apartment complex. Showing indicative furniture and fittings in rooms and highlighting the communal areas, the 3D representation makes the internal spatial arrangement easy to understand for potential purchasers.

1:100 Part Section of School

The model was conceived and built within 9 days and subsequently formed part of a major presentation including 3 illuminated 1:500 site models showing 3 different school designs.

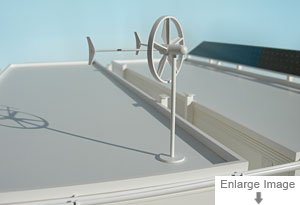

1:20 Portacabin Site Office

At 1:20 scale, this was quite a large and detailed model of what, on the face of it, is an uninspiring subject. However the model was actually commissioned to illustrate a proposed "environmentally friendly" site office featuring solar panels, rainwater collection, and a wind turbine.
