Massing Model – 1:500 scale

Stylized massing model with three removable panels.

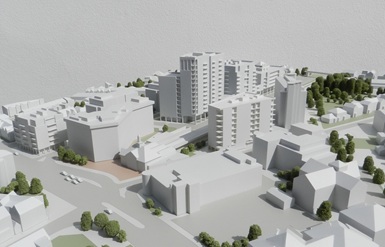

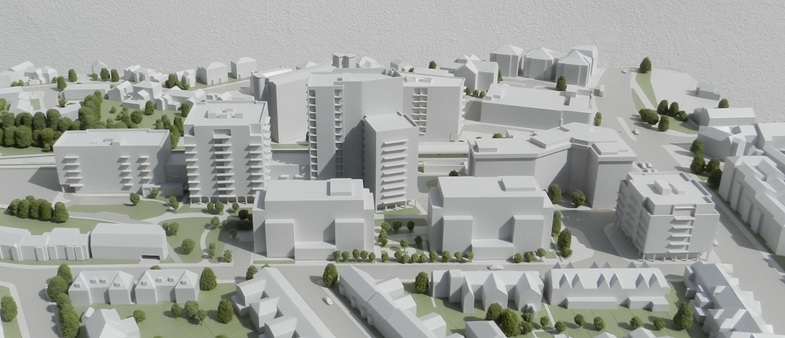

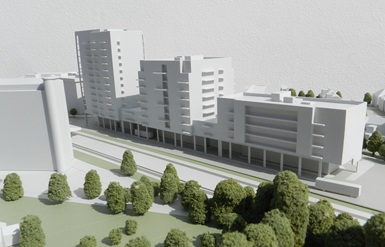

At 1:500 scale this cityscape model was only 80cm long x 55cm wide but, as you can see from the photos, at this small scale we can show a wide context area and a clearly understandable level of detail. The model shows the proposed new buildings with a much higher level of detail, including indicative balconies, to clearly distinguish them from the much more simplified surrounding context buildings. The new development comprised three separate sites which were all made as removable panels to allow easier updating as the scheme progressed through the planning process.
